Mobile Lithium Ion Battery Pack Spot Welder Equipment Industrial Grade

  • 1
  • 2
  • 3

Brand Name : ACEY

Model Number : ACEY-8000T

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 2160~3340/Set

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Packaging Details : Plywood Case

Warranty : 1 Year Warranty with Lifetime Support

After-sales Service : 24/7 Technical Support

Welding Power Supply : 8000A Transistor

Welding Head Drive Type : Pneumatic

Max Thickness of Parallel Welding : 0.08 ~ 0.25mm

Input Power Supply : AC220V±10% 50/60Hz

Machine Weight : 62kg

Machine Dimensions : L900mm*W650mm*H1139mm

Contact Now

8000A Transistor Gantry Manual Lithium Battery Pack Spot Welding Machine With Guide Rail



Product Description

ACEY-5000D lithium battery pack spot welding machine adopts an industrial-grade modular intelligent control platform, capable of automatically detecting and analyzing welding defects such as spark splash, false welding, weak welding, and missing welds, with real-time alarm functions. This effectively improves welding consistency, enhances product quality, and increases production efficiency.


The battery spot welder machine is well suited for small-batch and flexible production requirements. It supports the assembly of cylindrical battery cells including 18650, 21700, 26650, and similar models, and is compatible with nickel and nickel-plated steel strips. The equipment is widely used for battery pack manufacturing in applications such as e-bikes, scooters, electric motorcycles, and other light electric vehicles.


Features

  • Industrial-grade modular intelligent control platform ensures stable operation and precise welding performance
  • Designed for small-batch and flexible welding applications, improving efficiency and product consistency
  • Compatible battery types: cylindrical lithium-ion cells
  • Supports multiple cell models such as 18650, 21700, 26650, 32650, 32700 and 32140.
  • Foot pedal control for simple and reliable welding operation
  • Intelligent weld quality monitoring with weld point tracking, spark splash detection, false weld, weak weld, and missing weld monitoring, including data recording and alarm functions
  • Welding head options: pneumatic welding head or electric welding head, selectable according to process requirements
  • Equipped with a transistor welding power supply with a maximum output current of 8000A
  • Forced air cooling system ensures stable performance during continuous operation


Main Technical Parameter

Item Specification
Welding Power Supply Transistor welding power supply
Maximum Welding Current 8000A
Cooling Method Forced air cooling
Total Power Consumption ≤ 1.5 kW
Power Supply Voltage AC 220 V, 50 Hz / 60 Hz
Ambient Temperature -30 °C to 50 °C
Relative Humidity ≤ 90% (non-condensing)
Noise Level ≤ 80 dB
Grounding Type Direct grounding
Site Requirements No pollution, no strong electromagnetic interference
Installation Environment Flat surface, free of vibration and mechanical shock
Floor Load Capacity ≤ 200 kg/m²
Machine Dimensions (L × W × H) 900 × 650 × 1139 mm (subject to actual machine)
Machine Weight Approx. 52 kg
Machine Color Computer white (customizable upon request)

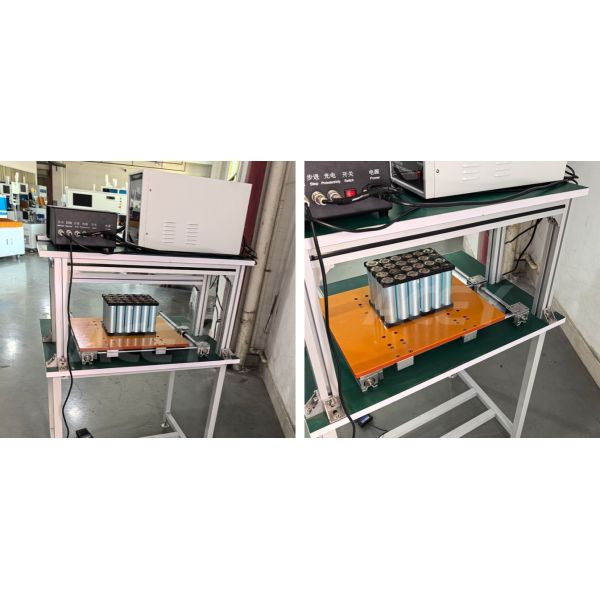

Product Display

Mobile Lithium Ion Battery Pack Spot Welder Equipment Industrial Grade


Mobile Lithium Ion Battery Pack Spot Welder Equipment Industrial Grade
