Electric Desktop 18650 Lithium Battery Pack Spot Welder machine 8000A Transistor

Brand Name : ACEY

Model Number : ACEY-8000T

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 2160~3340/Set

Payment Terms : T/T,PayPal,L/C,Western Union,MoneyGram

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Packaging Details : Plywood Case

Warranty : 1 Year Warranty with Lifetime Support

After-sales Service : 24/7 Technical Support

Welding Power Supply : 8000A Transistor

Welding Head Drive Type : Pneumatic

Max Thickness of Parallel Welding : 0.08 ~ 0.25mm

Input Power Supply : AC220V±10% 50/60Hz

Machine Weight : 62kg

Machine Dimensions : L900mm*W650mm*H1139mm

Contact Now

8000A Transistor Electric Desktop Manual Lithium Battery Pack Spot Welder

Product Description

ACEY-8000T battery pack spot welder consists of a frame, welding table, welding head, and welding power supply. It is built on an industrial-grade modular intelligent control platform that monitors the welding process in real time and automatically detects defects such as spatter, false welds, weak welds, and missed welds, with alarm notifications. This helps improve weld consistency and product quality while increasing production efficiency, making the machine well suited for small-batch welding applications.

Features

  • Panel Microcomputer control, high precision welding machine with plc display panel.
  • Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.
  • Industrial circuit design, safe and reliable.

Main Technical Parameter

Applicable Battery Type Cylindrical lithium-ion cells
Welding Control Mode Foot pedal control
Monitoring & Alarm Functions Weld point tracking; detection and recording of spatter, false welds, missed welds, with alarm alerts
Welding Head Options Pneumatic welding head / Electric welding head
Welding Power Supply Transistor welding machine, max current 8000A
Cooling Method Forced air cooling
Ambient Temperature -30°C to 50°C
Relative Humidity ≤ 90%
Air Supply Pressure 0.4–0.6 MPa (pneumatic type only)
Power Supply 220V or 380V, 50Hz / 60Hz
Floor Load Capacity ≤ 200 kg/m²
Grounding Type Direct grounding
Site Requirements Clean environment, free of heavy pollution and strong electromagnetic interference
Installation Conditions Level surface, no vibration or impact
Noise Level ≤ 80 dB
Overall Dimensions (L×W×H) Approx. 900 × 650 × 1139 mm (subject to actual machine)
Machine Weight Approx. 52 kg
Appearance Color Computer white (customizable on request)
Total Power Consumption ≤ 1.5 kW

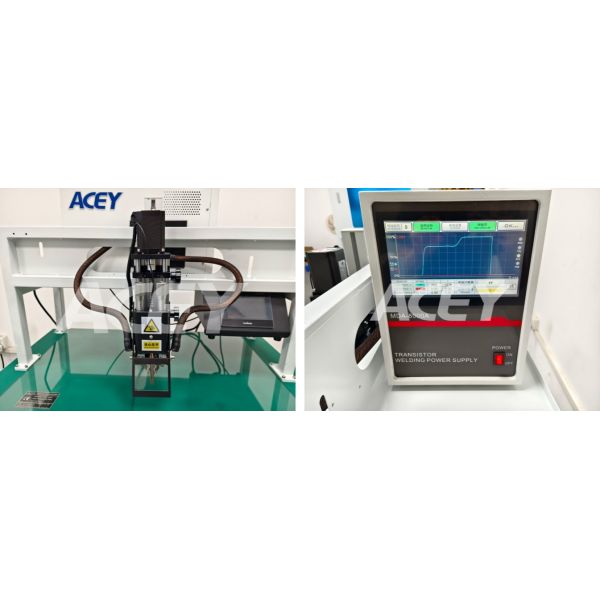

Product Display

Electric Desktop 18650 Lithium Battery Pack Spot Welder machine 8000A Transistor

Electric Desktop 18650 Lithium Battery Pack Spot Welder machine 8000A Transistor
